12PSB-X Conventional Diesel Injection Pump Test Stand | Professional Fuel Pump Testing Equipment

12PSB-X Conventional Diesel Injection Pump Test Stand | Professional Fuel Pump Testing Equipment

Product Introduction

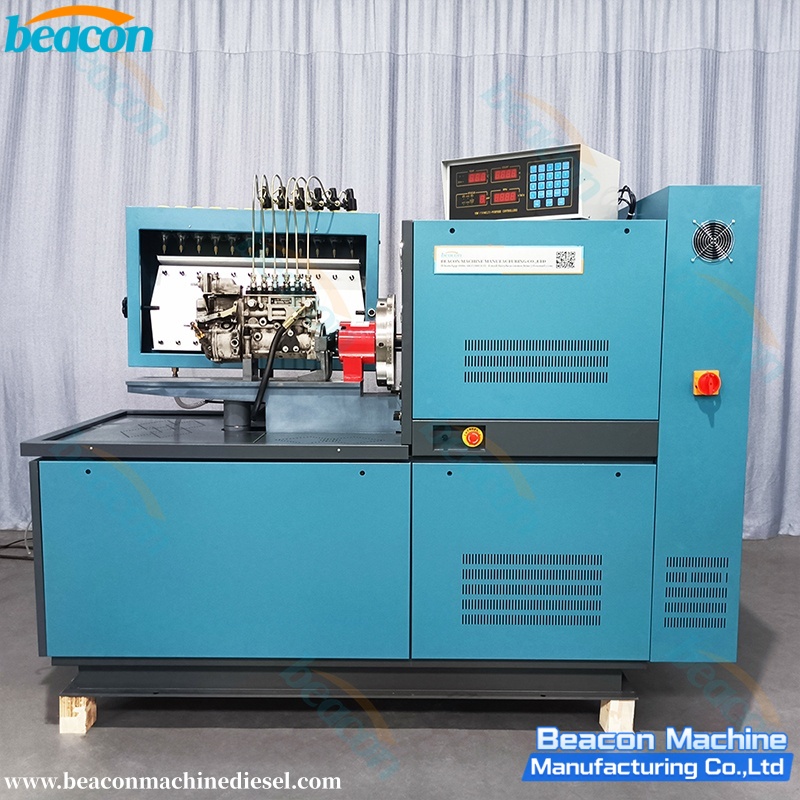

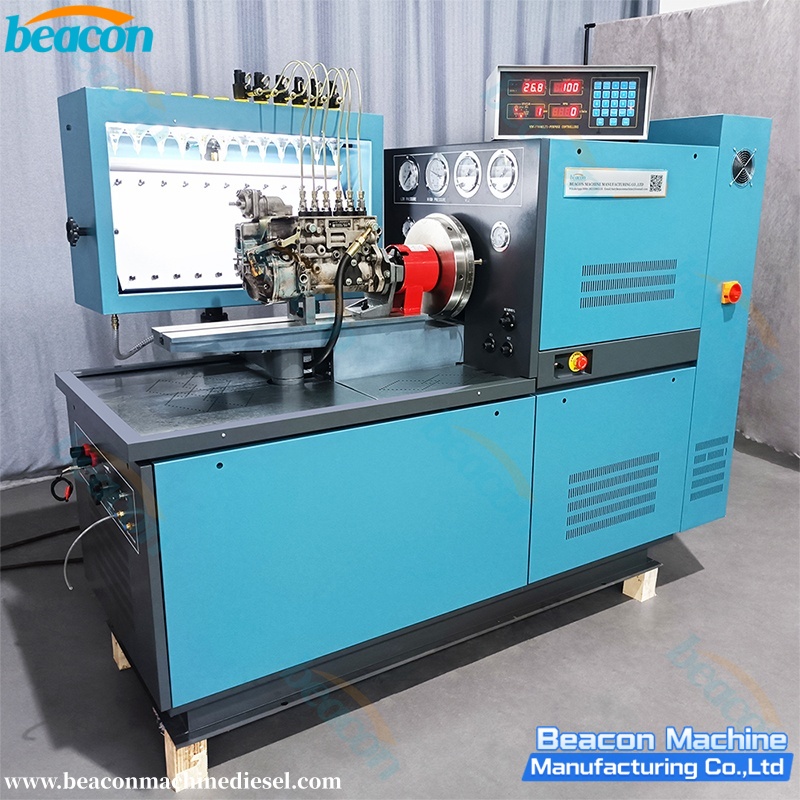

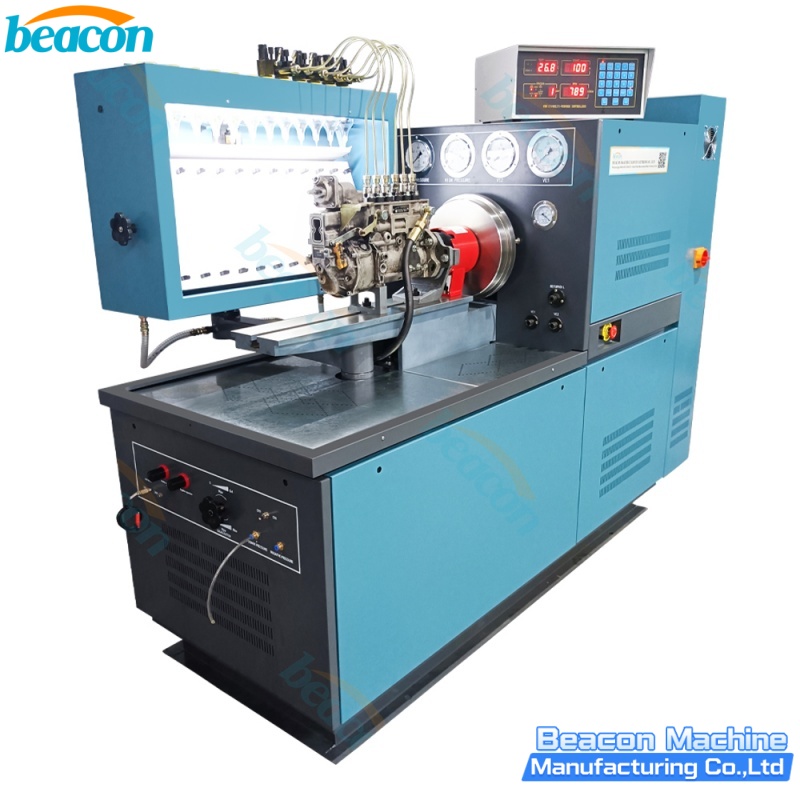

The 12PSB-X Diesel Injection Pump Test Stand is the classic standard model in the 12PSB series. It is designed to provide reliable calibration for multi-cylinder mechanical pumps and distributor pumps. Unlike the E-series, the X-series focuses on a compact, standard chassis design suitable for workshops requiring a traditional setup.

Core Capabilities:

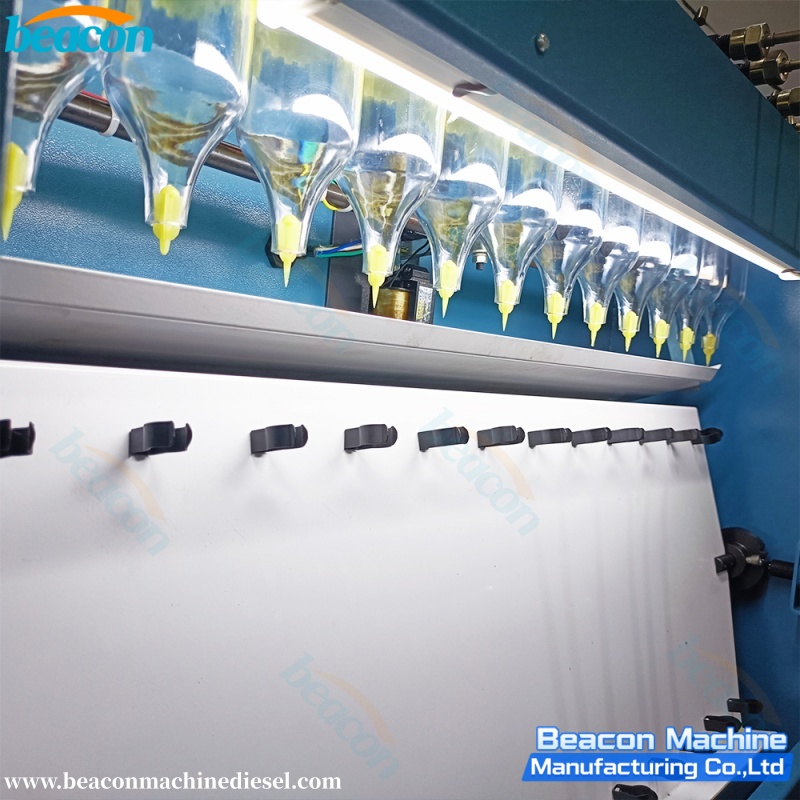

Delivery Measurement: Accurately measures fuel delivery of each cylinder at various rotation speeds.
Timing & Interval: Tests the oil supply point and interval angle of the injection pump.
Governor Adjustment: Checks and adjusts mechanical governors for optimal performance.

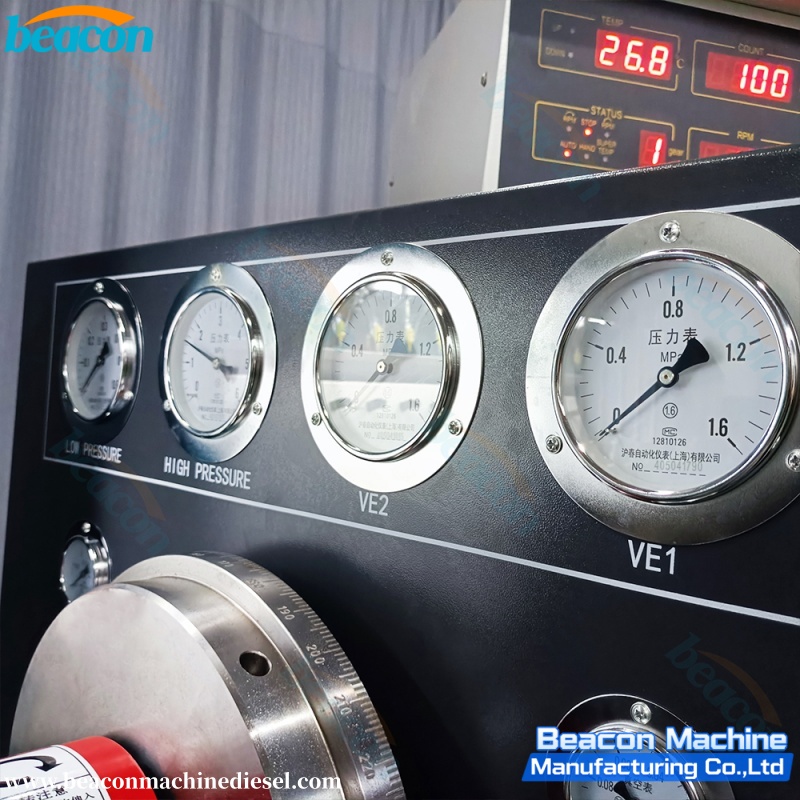

Distributor Pump Logic: Full testing for distributor pumps, including pressure measurement, oil return (VE), and electromagnetic valve testing (12V/24V).
Compensatory Testing: Adjusts the performance of supercharging and compensatory devices.
System Integrity: Conducts sealing tests on the pump body and validates the internal pressure of distributor pumps.
Optional Functions: Can be equipped to check advance angles and rack travel upon request.

12PSB-X Conventional Diesel Injection Pump Test Stand Advantage

Classic Appearance: Available in standard industry colors— Blue or Yellow-Green —to match your workshop's aesthetic.
Compact Standard Design: A streamlined chassis without extra storage compartments, making it a space-efficient choice for focused calibration work.
Optimized Temperature Control: Integrated with Forced Cooling (Refrigerant: R22) to prevent overheating during intensive testing cycles.
Stable Lubrication: Features a reliable Oil Lubrication system to protect the test bench mechanism.
VE Pump Ready: Includes the VE pump return oil flow meter (Yellow Box) and auto-sucking oil supply functionality.
Pneumatic Support: Built-in gas pump with gas storage function to support various pneumatic testing requirements.
